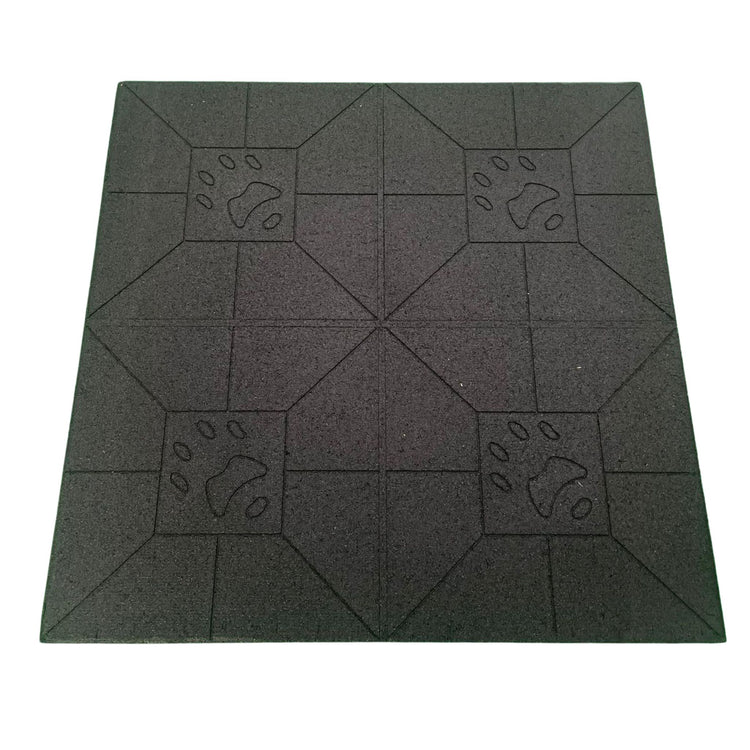

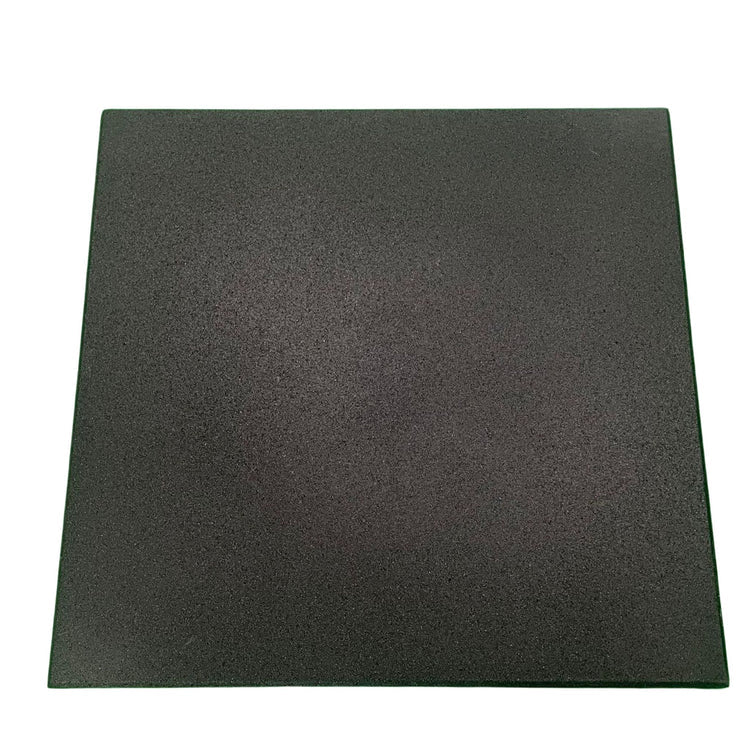

Flatline PRO Garage Gym Flooring Set – 13m² (13× 1m×1m×20mm Tiles)
This comprehensive set includes 13 premium 1m×1m×20 mm Flatline PRO black rubber tiles, ideal for converting a standard single garage into a durable, professional-quality home gym.
- ✅ Complete Coverage: Perfectly fits most single garages (~13 m²)
- ✅ Cold-Pressed Precision: ±0.5% size tolerance—seamless joins
- ✅ Shock & Noise Reduction: 20 mm thickness absorbs impact and up to 23 dB sound
- ✅ Anti-Slip & Safe: R10-rated surface ensures grip underfoot
- ✅ Low-Odour Recycled SBR: VOC-tested, non-toxic, reversible airflow backing
- ✅ No Adhesive Required: Heavy 18.5 kg tiles stay in place
- ✅ Free Delivery in Ireland

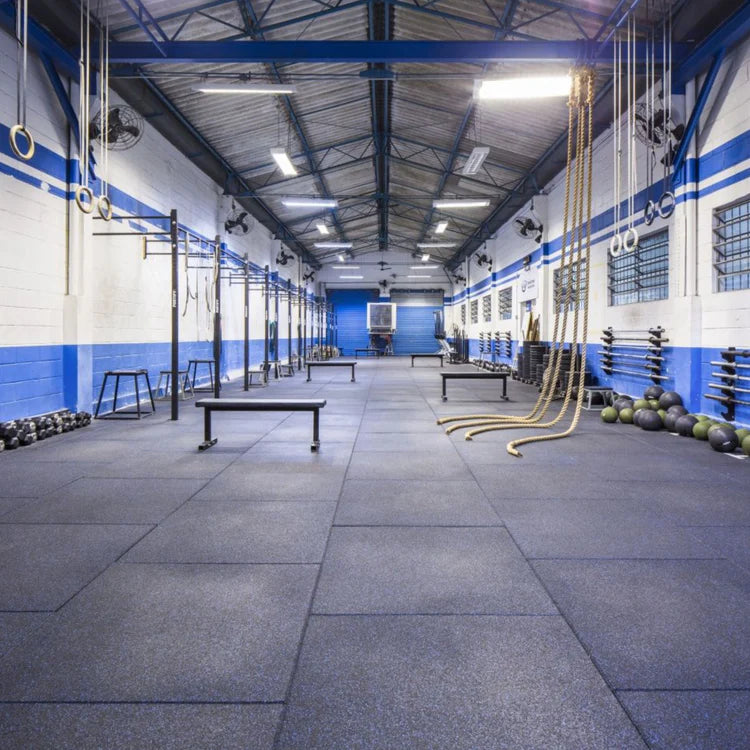

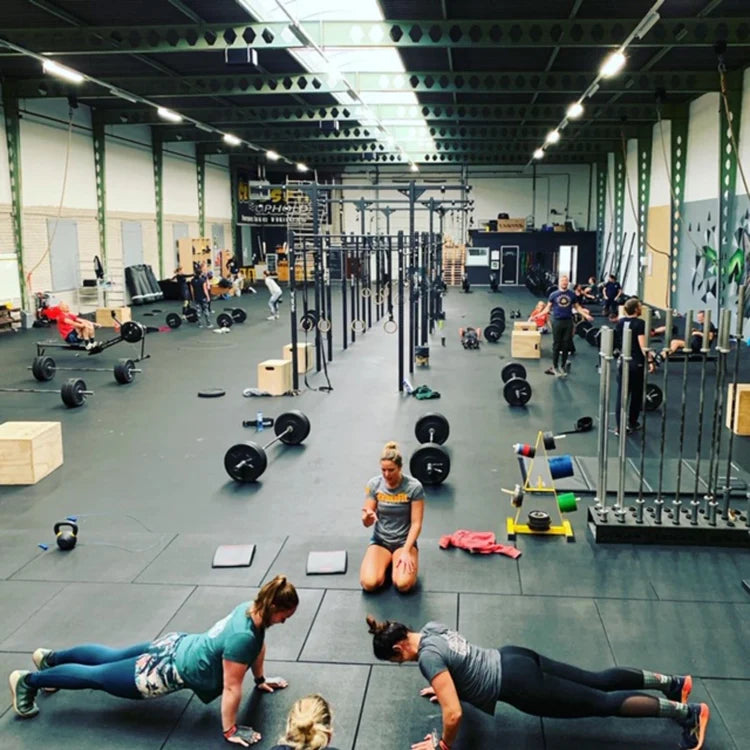

Ideal Applications:
- Home or garage gym flooring
- Weightlifting platforms
- Functional fitness & CrossFit zones
- Protective workshop flooring
Tile Details:
- Size: 1m × 1m × 20mm
- Weight: ~18.5kg each
- Material: Recycled SBR rubber + PU binder
- Slip Rating: R10
- Density: ~950 kg/m³
- Tolerance: ±0.5%
- Sound Reduction: 18–23 dB
- Thermal Range: –30 °C to +80 °C
- Warranty: 3 years
Simple Install Notes:
- Lay in brick pattern for best joint alignment
- Allow tiles 12–24 hrs to acclimatise
- Cut with sharp utility blade
- Use adhesive on high-traffic zones if desired
📦 Choose the perfect fit for your space:
Specifications
📊 Technical Specifications – Flatline PRO Rubber Gym Tiles
🔇 Sound Reduction:
Improves impact noise by approx. 18–23 dB, depending on subfloor and installation
🦶 Anti-Slip Ratings:
-
R10 Slip Resistance (DIN 51130)
-
Class DS (EN 14041 – safer indoor flooring rating)
⚡ Electrical Properties:
🧪 Material Composition:
- Recycled SBR rubber, bonded with low-VOC polyurethane
-
REACH compliant and VOC tested
📏 Physical Specs:
-
Tile size: 1000mm x 1000mm
-
Thickness: 20mm
-
Weight per tile: ~18.5kg
-
Bulk density: 950–980 kg/m³
-
Tensile strength: 1.38 N/mm²
-
Force reduction: 10–18%
-
Max drop weight: 150kg
-
Length tolerance: ±0.5%
-
Thickness tolerance: ±1%
🔥 Thermal & Fire Resistance:
-
Working temp: –30°C to +80°C
-
Short-term tested: Up to +300°C
-
Thermal conductivity: 0.17 W/(m·K)
-
Expansion coefficient: 23.1×10⁻⁵/°C
-
Fire rating: Class B2 (EN 13501)
💧 Environmental Properties:
- Vapour permeable
-
Resistant to water, diluted acids/alkalis
-
UV-resistant, chemically neutral (EN 423)
FAQ
📐 What are the dimensions and thickness of these tiles?
Each tile in this set measures 1m x 1m and is 20mm thick. The tiles are cold-pressed, giving very tight tolerances:
– Length/width: ±0.5%
– Thickness: ±1%
🏋️ Are these tiles suitable for indoor use?
Absolutely. They’re REACH compliant and VOC tested, making them safe for indoor environments like closed garages. No toxic binders, no strong odours.
♻️ What material are the tiles made from?
Flatline PRO tiles are manufactured using non-toxic, low-VOC polyurethane binders imported from Germany. We are the only Irish supplier with rubber gym mats that are both REACH-certified and VOC-tested for safety and indoor air quality.
💪Will these tiles reduce noise in my garage?
Yes – the 20mm thick recycled rubber helps reduce sound by 18–23 dB, depending on subfloor and fit. Ideal for minimising vibration and dropped weight noise in garage gyms.
🛠️ Do I need adhesive to install these tiles?
Not usually. Each tile weighs approx. 18.5kg, and the set fits tightly within a typical single garage space. The weight alone keeps them stable. For added peace of mind in high-impact zones or near doorways, you can use double-sided tape or border edging.
🛠️ How do I cut tiles to fit the garage edges?
Use a sharp Stanley knife and a metal straight edge. Score multiple times for clean cuts. Curves (e.g., around pillars) may need a few passes before applying pressure to snap.
🧽How do I clean and maintain the tiles?
For garages, regular vacuuming or sweeping works well. For deeper cleans, mop with warm water and a mild pH-neutral cleaner. Avoid strong chemicals. Chalk users: vacuum thoroughly before mopping to avoid residue.
📄 View our Cleaning Guide
🦶 Are these tiles non-slip?
Yes – they’re rated R10 (DIN 51130) and Class DS (EN 14041). That makes them safe for most dry or slightly wet garage gym environments where grip matters.
👃 Do the tiles have a strong rubber smell?
No – the tiles are made using a low-odour binder.
🔥 What’s the fire safety rating?
The tiles carry a Class B2 fire rating (EN 13501). For commercial garage gyms or workshops, always check with local building codes or insurers before installing.
📦 How will this 13m² set be delivered?
The tiles will be send out with free delivery. Tiles arrive flat-packed on a pallet – please ensure good access for the delivery vehicle. Kerbside/driveway delivery only. The driver is not authorised to carry goods up or down steps or through your property.
💷 Are bulk discounts available?
Yes, we offer discounted pricing for bulk orders. Please contact our sales team for a custom quote.
